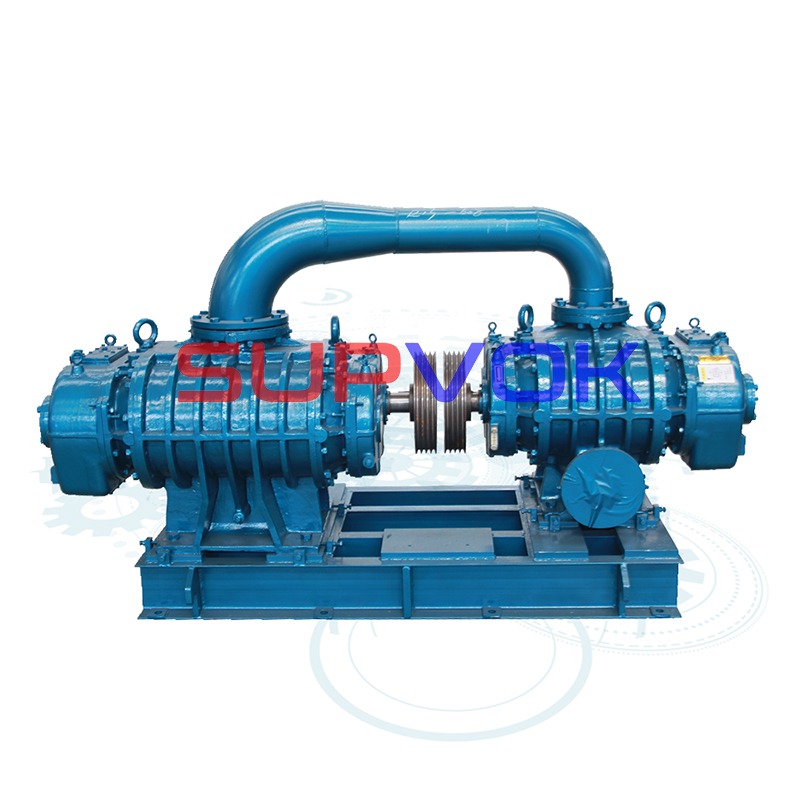

Product characteristics
1.Roots blower adopts casing with special structure design to ensure reliable operation under high pressure and reduce operating noise;
2.The impeller and shaft of the fan adopt an integrated structure with good rigidity to ensure high pressure, large flow and stable operation of the fan at high speed;
3.The oil tank of the fan is made of aluminum alloy with air cooling structure, and the single-stage pressure of 98kPa does not need cooling water;
4.It adopts the dense unit design and compact structure. The belt tension adopts self tension structure, which is convenient for use and maintenance;
5.The fan host can be used both vertically and horizontally, which easily replace foreign models;
6.It adopts precise hard tooth surface helical synchronous gear, keyless connection, reliable positioning, stable operation, low noise, high strength and long service life.
Technical indicators
Blower flow: 0.43~184m3/min
Blower pressure rise: 9.8~98kPa
Vacuum pump flow: 0.52 ～ 183.9m3/min
Vacuum degree: - 9.8 ～ - 49kPa

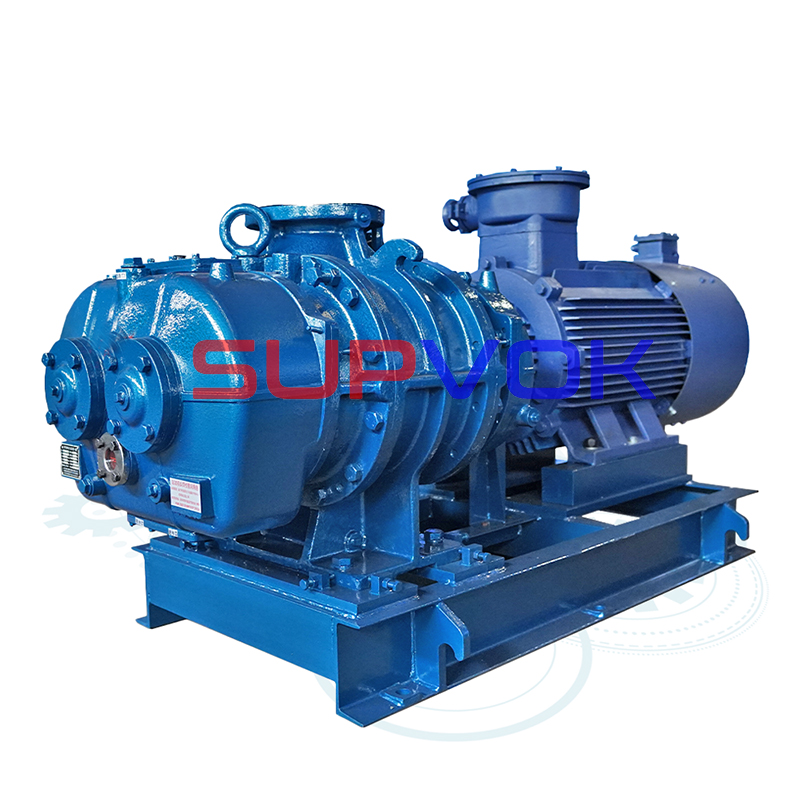

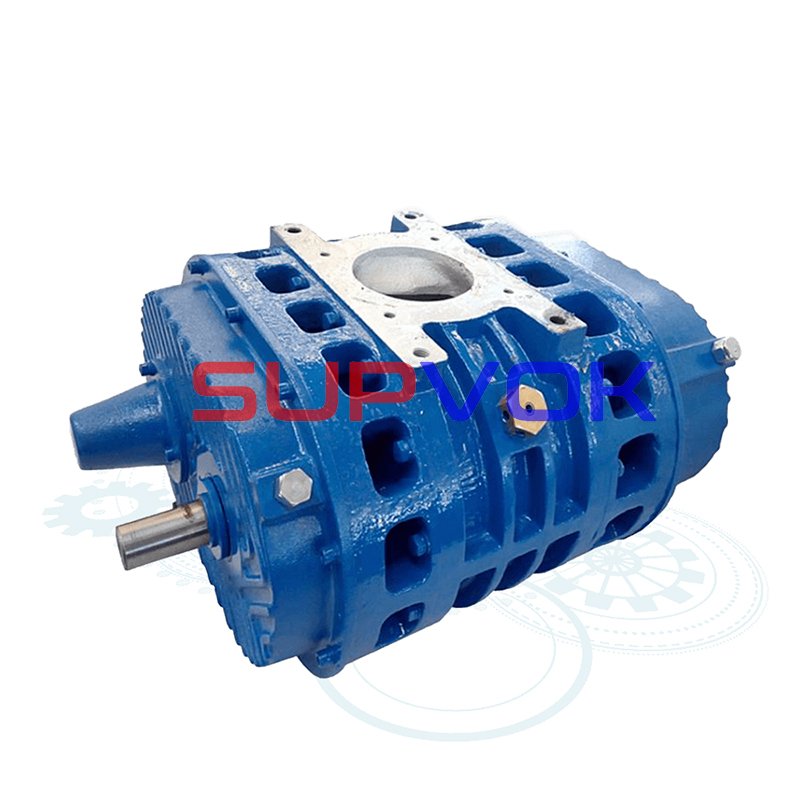

Roots blower with three blades
1.It adopts advanced driving gear, which not only extends the service life, but also realizes low noise.
2.The air inlet and outlet of this fan are not opened or closed instantaneously like the old fan. Therefore, its operation sound is very small, and there is almost no exhaust pulsation.
3.The output air is clean without any oily dust.
Technical indicators
Flow: 0.6m3-90m3/min;
Pressure rise: 9.8~78.4kPa
Main applications
It is widely used in water treatment, pneumatic conveying, vacuum packaging, aquaculture and other industries.

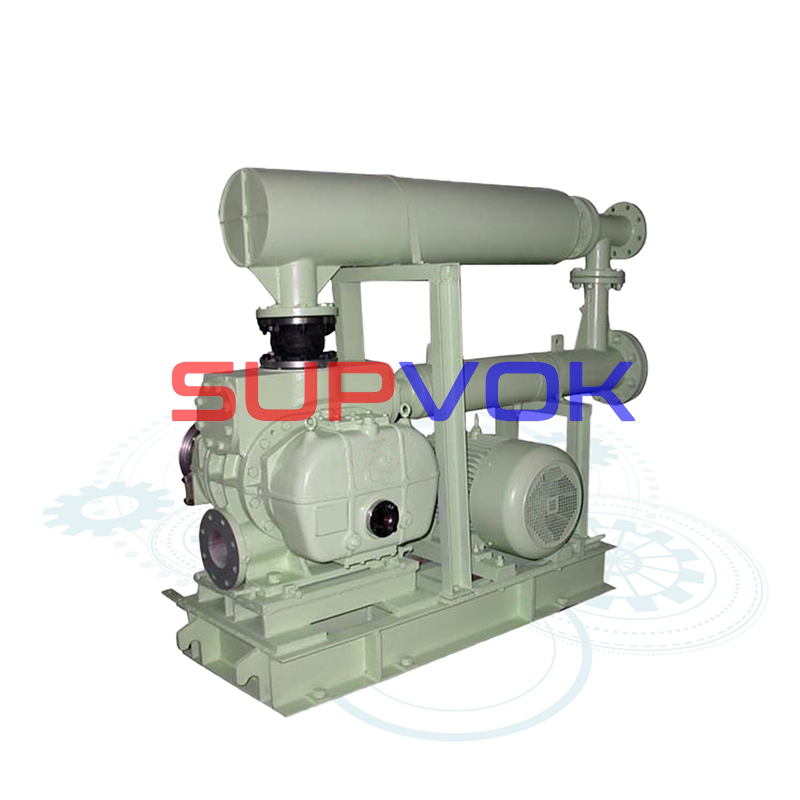

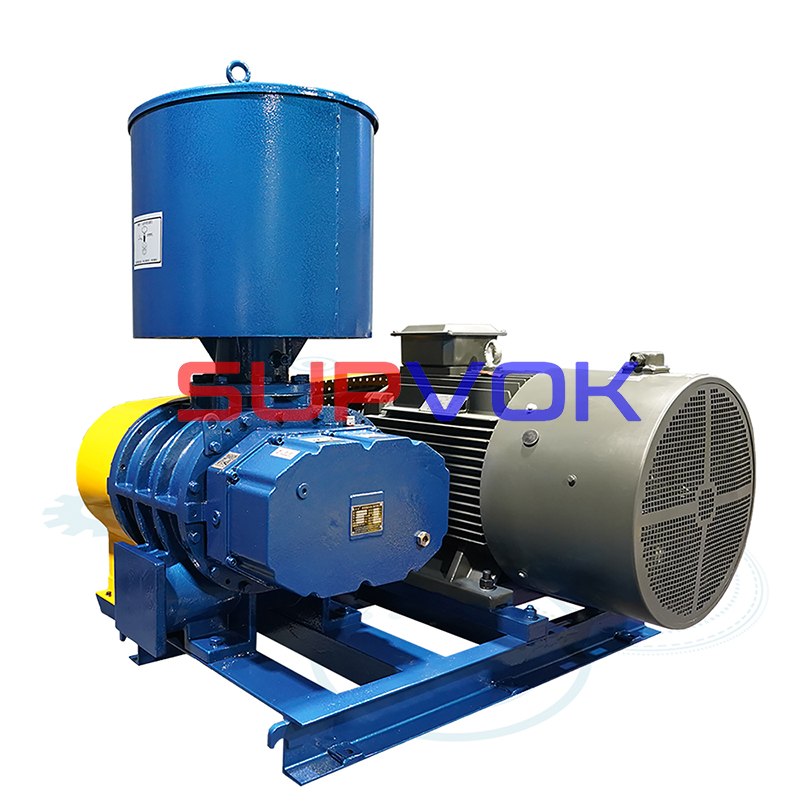

KSINO’s roots blower and vacuum pump adopts the latest design and manufacturing technology from Japan.
Product characteristics
1.Many varieties and specifications
The products can be divided into positive pressure, negative pressure, dry type and wet type. It has the characteristics of dense flow classification and convenient user selection.
2.The product is positioned with specially customized imported small clearance bearing, which ensures reliable axial positioning of fan impeller and convenient adjustment.
3.The impeller adopts an integral casting structure. The high level accuracy of impeller surface has no need to repair during assembly. It makes the impeller fully interchangeable.
In addition to labyrinth seals, shaft seals also have mechanical seals, packing seals and other sealing forms, which can meet the transportation needs of different media.
Technical indicators
Flow of single-stage roots blower: 0.95 ～ 452m3/min, pressure rise: 9.8 ～ 98kPa;
Flow of single-stage dry roots vacuum pump: 0.51 ～ 452m3/min, vacuum degree: - 9.8 ～ - 49kPa;
Flow of single-stage wet roots vacuum pump: 0.57~456m3/min, vacuum degree: - 13.3~-53.3kPa.
Main applications
It is widely used in power, petroleum, chemical, fertilizer, steel, smelting, oxygen production, cement, food, textile, paper making, dust removal and back blowing, aquaculture, sewage treatment, pneumatic transmission and other sectors.
Centrifugal blower
Air suspension blower belongs to centrifugal blower. The single-stage high-speed centrifugal blower with air suspension bearing is a blower system with single-stage compression structure, whose centrifugal impeller is directly connected to the motor. Its frequency converter controls the speed to control the air volume.
It has modular design, core technologies (air bearing, motor, impeller, etc.) for integrated installation and optimization of compression section, frequency converter and programmable logic controller (PLC). They are important to ensure the stable and reliable operation.
Air bearing: While rotating, air flows on the surface of the shaft, generating pressure and forming an air film. As the speed of rotation increases, the shaft is suspended.
Advantage:
1. No contact or friction, high efficiency;
2. No lubricating requirement of oil;
Impeller:
High efficiency backward curved impeller;
Optimized assembly technology improves efficiency and adjustment range;
Five axis linkage NC machining ensures the accurate reflection of the design profile and excellent durability design.
Motor:
In high-speed rotation, patented self circulating cooling technology can ensure efficient operation;
The simple design can ensure excellent durability under extreme working conditions;
KSINO provides induction motors and permanent magnet synchronous motors。
Screw blower
Screw blower is a new product developed to meet the needs of energy conservation and environmental protection in the market by integrating years’ design and manufacturing experience. This series of screw blower has compact structure, unique appearance, high efficiency, low noise, reliable performance and long service life. It is very suitable for medium and small flow, high pressure applications. At present, it is widely used in metallurgy, machinery, chemical industry, geology, mining, power and other industrial fields of the ideal gas source equipment.
Main characteristics
1. The advanced rotor profile design can effectively reduce the fluid power loss and improve the efficiency of the main engine.
2. It has excellent internal compression characteristics and low power consumption. Compared with Roots blower, its energy-saving performance is up to 30%.
3. It adopts air cooling structure. Its single-stage pressure is 250kPa, without cooling water.
4. The oil-free design in the rotor cavity can ensure the air quality.
5. The air pulsation level is low. At high speed and high pressure, the fan can operate stably with low aerodynamic noise.
6. With the helical synchronous gear, keyless connection and reliable positioning, it ensures stable and safe operation within a large speed range.
7. The rotor is designed with large shaft diameter. The shaft has higher stiffness and bearing capacity.
8. The positioning end adopts four point angular contact ball. The combined configuration of bearing and cylindrical roller bearing ensures that the bearing has sufficient bearing capacity and stability under extreme working conditions, thus extending the service life of the bearing.
9. The casing adopts the structural design of intermediate connection, which makes the casing bear uniform force and improves the overall bearing capacity of the casing. The large stiffening rib design can enhance the casing stiffness, thus ensuring reliable operation under high pressure.
10. It adopts splash lubrication, with low power consumption for oil stirring, so as to ensure stable supply of lubricating oil for gears and bearings.
11. The unique gas seal setting has good sealing effect and long service life.
12. The end cover adopts streamlined radiator design, which is more conducive to heat dissipation of the gearbox.
Product performance
Blower
Pressure: 34.5 ～ 248.2kPa
Flow: 9.05~74.8m3/min
Shaft power: 11.9 ～ 230kW
Vacuum pump
Pressure: - 16.9 ～ - 74.5kPa
Flow: 9.05~75.2m3/min
Shaft power: 5.2 ～ 70.7kW

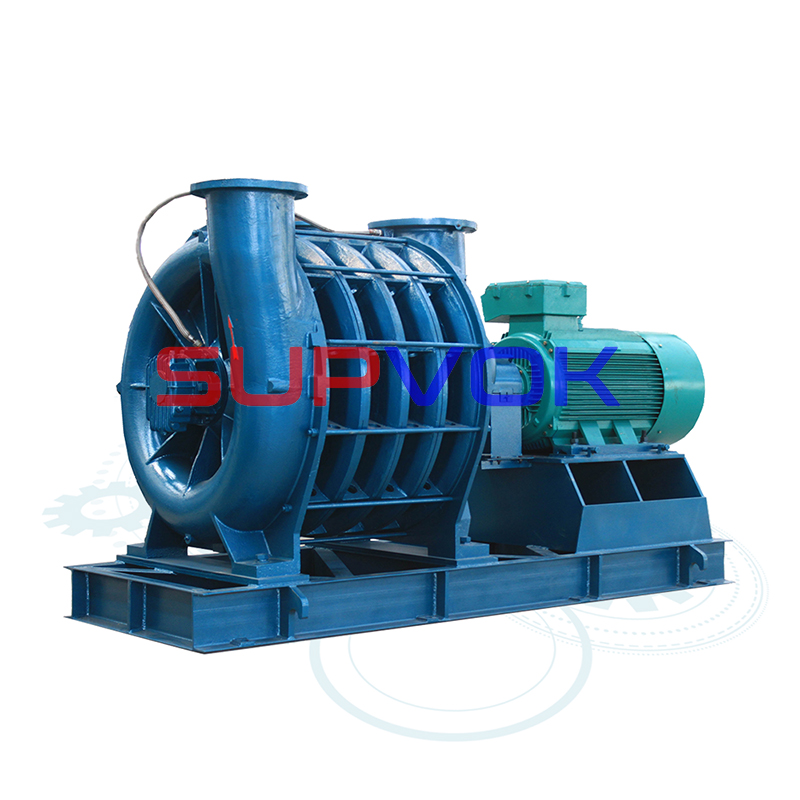

Fanner
1.Relying on the scientific research technology of China's famous universities, KSINO develops, designs and produces industrial centrifugal blowers. Its contents include advanced technology selection, modular design, process manufacturing quality control and on-site commissioning. Its contents include advanced technology selection, modular design, process manufacturing quality control and on-site commissioning. The type selection design method is optimized and customized by computer according to requirements. The whole set of technology provides users with high-quality products, and provides technical transformation for applied fans, optimizes fan performance, and improves the economy and reliability of fan operation.
2.The blower has high efficiency. The highest operating efficiency of blowers can reach 90%. Compared with the domestic conventional design centrifugal blower, its efficiency is increased by more than 5%, which presents obvious economic benefits of energy saving and electricity saving.
The blower has wide range of technical parameters. Meanwhile, it adopts the customized method to make design. In another word, according to the parameters given by the user, the blower model that completely and exactly matches its parameters can be obtained by modularization, so that the blower can operate in the highest efficiency zone.
Performance range
Flow: 1~800m3/s,
Pressure range: 300~50000Pa.
Main applications
It is widely used in power station, environmental protection, mining, metallurgy, petrochemical, subway, tunnel, wind tunnel and other industries. Its market prospect is broad.
It is widely used in power station, environmental protection, mining, metallurgy, petrochemical, subway, tunnel, wind tunnel and other industries. Its market prospect is broad.
