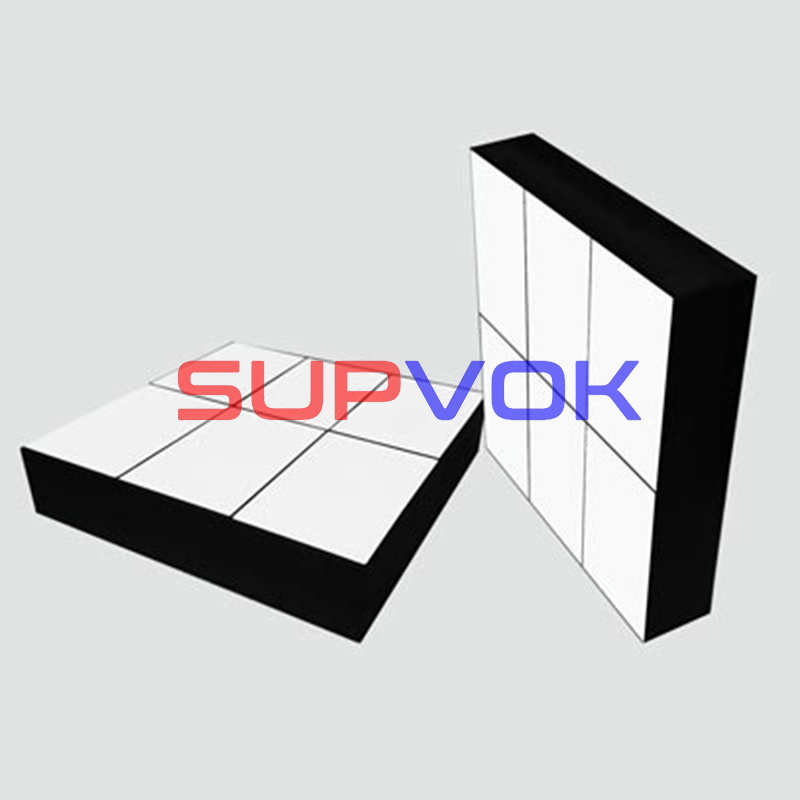

Ceramic composite liner

Wear resistant ceramic lining plate, mainly made of aluminum oxide, silicon carbide and zirconia

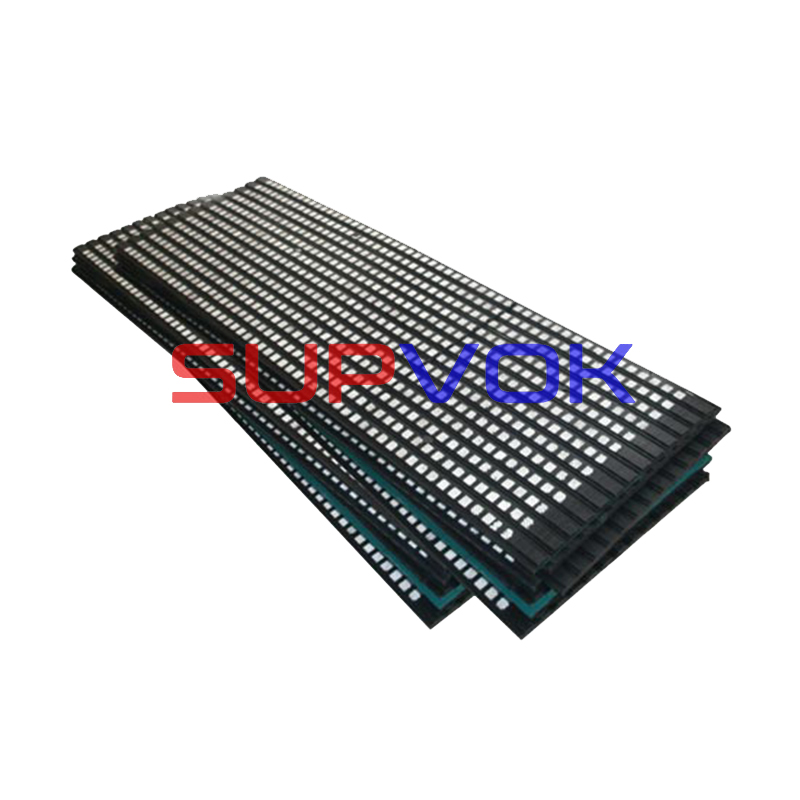

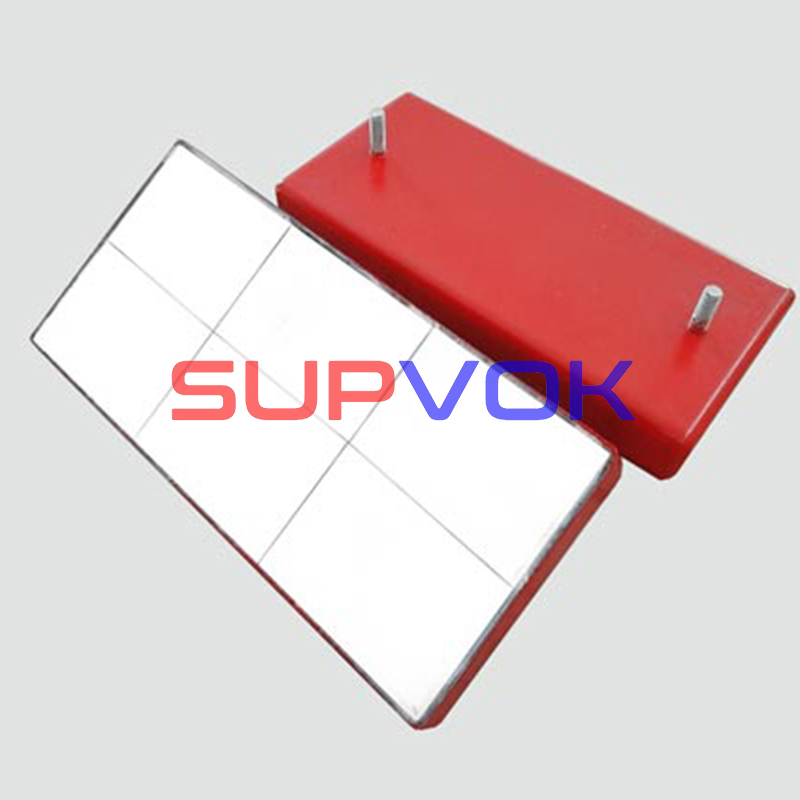

Rubber composite ceramic lining plate

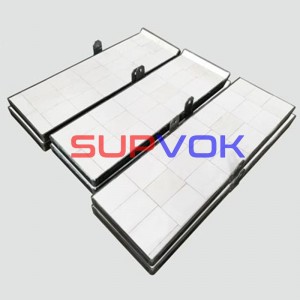

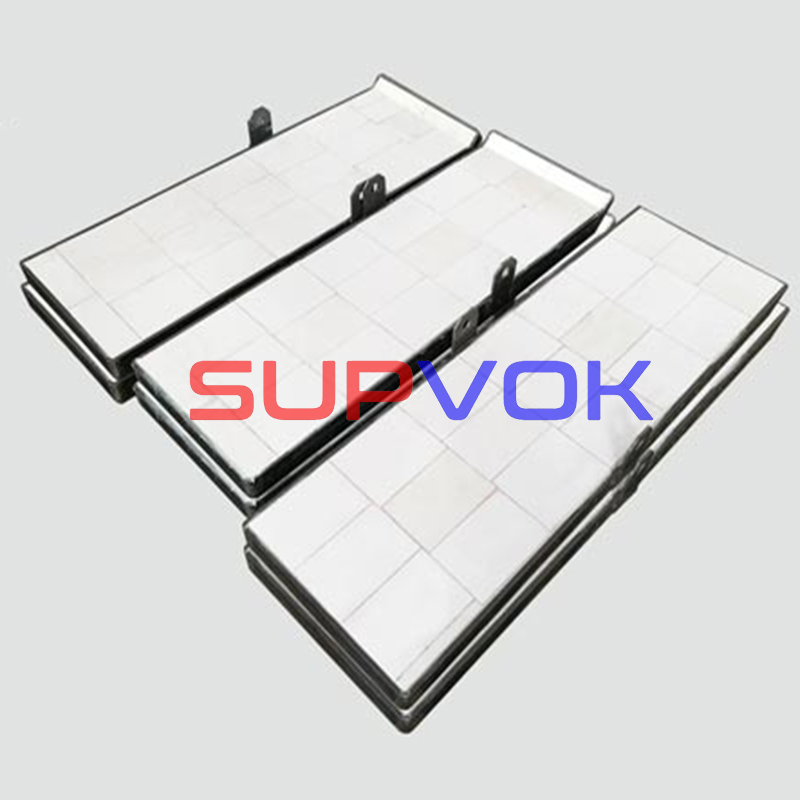

Metal to ceramic liner

Use of wear-resistant ceramic lining plate: it is a wear-resistant material for material conveying equipment or liquid flowing through the pipe surface in petroleum, mining, steel plant, power plant and other industries. Its main function is to effectively resist the impact of materials on the pipe wall, the corrosion of chemical substances and the thermal impact of materials, reduce the wear of equipment components, thus greatly reducing the cost of frequent maintenance, and extending the service life of equipment, It is a good choice for industrial wear-resistant, impact resistant and corrosion resistant materials. Features of wear-resistant ceramic lining plate: It has the characteristics of wear resistance, impact resistance, corrosion resistance, high temperature resistance, convenient construction, etc. It is an ideal wear-resistant material for the surface of conveying equipment of materials (such as ash, pulverized coal, mineral powder, tailings, cement, etc.) in the power, metallurgy, coal, petroleum, cement, chemical industry, machinery and other industries. It is very safe and reliable to use in the occasions of high temperature corrosion, high temperature wear or high temperature melting corrosion, and its service life is longer than that of cast stone, wear-resistant alloy cast steel, steel plastic The installation of wear-resistant ceramic lining plates made of steel rubber and other materials is ten to twenty times higher: there are two types, welding and adhesive, depending on the specific construction environment. Welding is generally used under the working condition with large impact force, and the adhesive can affect the adhesion. The temperature cannot exceed 300 degrees.

We only choose good raw materials. Our wear-resistant ceramic lining plates are fired in tunnel kilns. The kiln temperature is stable. The fired ceramic lining plates are uniform in color and have the texture of jade. From the outside, the surface is neat without adhesion, and there is no black spot (the content of impurities in high-quality raw materials is small). They have passed the ASTM65 test. B. There are many wear-resistant ceramic liner molds. After years of accumulation, the company has hundreds of sets of molds for customers to choose. The products are strictly sorted and do what they say without making false promises. C. With years of experience in wear-resistant ceramic liner construction and professional technicians, the company can provide technical guidance and identification methods for the installation of wear-resistant ceramic liner. A. The wear-resistant ceramic liner is expected to have a flat surface, no black spots, smooth without roughness, and uniform color, The shape of the iron distribution bowl of the welded wear-resistant ceramic lining plate is consistent with the inner hole of the lining plate, and the minimum weight is not less than 5g B. Measure the density. The aluminum oxide content can be calculated by measuring the density. Carry out the wear-resistant experiment with a sandblasting machine at a pressure of 40kg/cm3, a distance of 50mm, a spraying angle of 45 degrees, and a time of 60 minutes

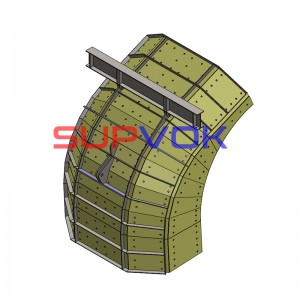

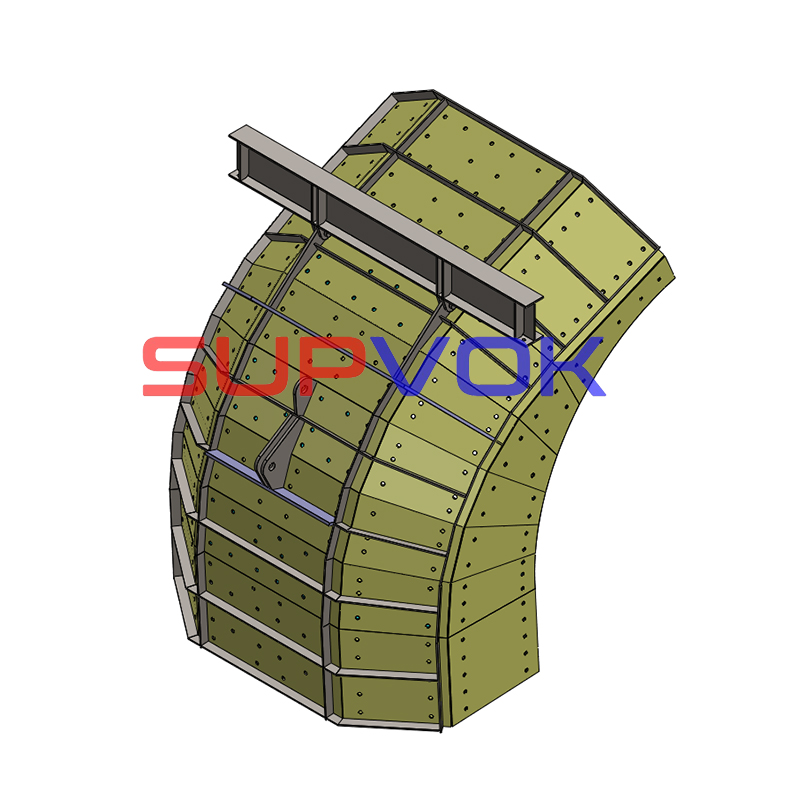

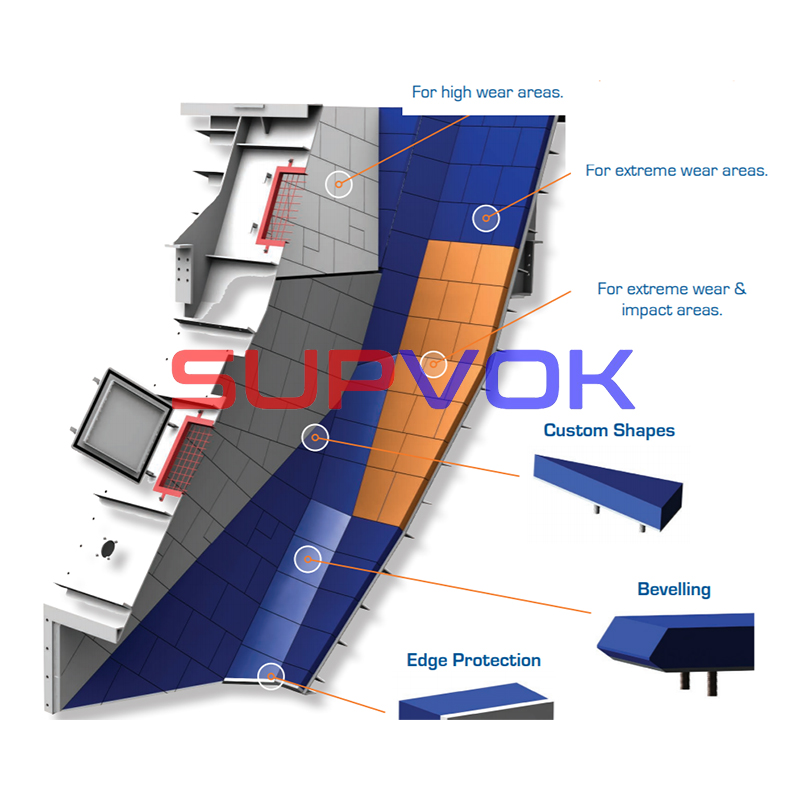

Application of wear-resistant ceramic lining plate Material conveying system in iron and steel industry: bucket wheel, hopper, silo, belt conveyor apron, trolley three-way bucket, receiving hopper batching system: mixing silo, primary mixing cylinder, secondary mixing cylinder, mixing disc, mixing cylinder scraper, pelletizing disk sintering system: Beneficiation hopper under vibrating screen, raw material transport chute, cyclone dust collector and pipeline, fan impeller Limestone crushing system in cement industry and raw fuel pre homogenization system: chute, hopper, Belt pulley raw material mill system: deflector vane of powder concentrator, cone of powder concentrator, pipe from vertical mill to cyclone, cyclone, fuel mill (steel ball mill), shell of powder concentrator, inner cone, coal powder pipe fuel mill (steel ball mill): shell of powder concentrator, inner cone, coal powder pipe, coal powder return pipe, port industry berth fixed hopper, bucket wheel fixed hopper, belt conveyor transfer station fixed hopper, ship unloader hopper
