Hydrocyclone introduction
Hydrocyclone is a kind of equipment that uses water as the medium to classify and separate mineral grains in the centrifugal force field of tens to hundreds of times of gravity acceleration. According to different uses, it can be divided into grinding classification cyclone, ultra-fine classification cyclone, desliming cyclone, concentration cyclone, etc. It can be used for grinding and grading operations, raw ore desliming operations, fine grading operations, concentrate concentration operations, tailings damming operations, tailings filling operations, tailings dry drainage operations, etc. of ferrous, non-ferrous and non-metallic ores.

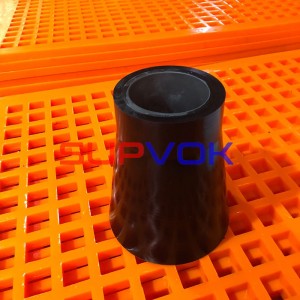

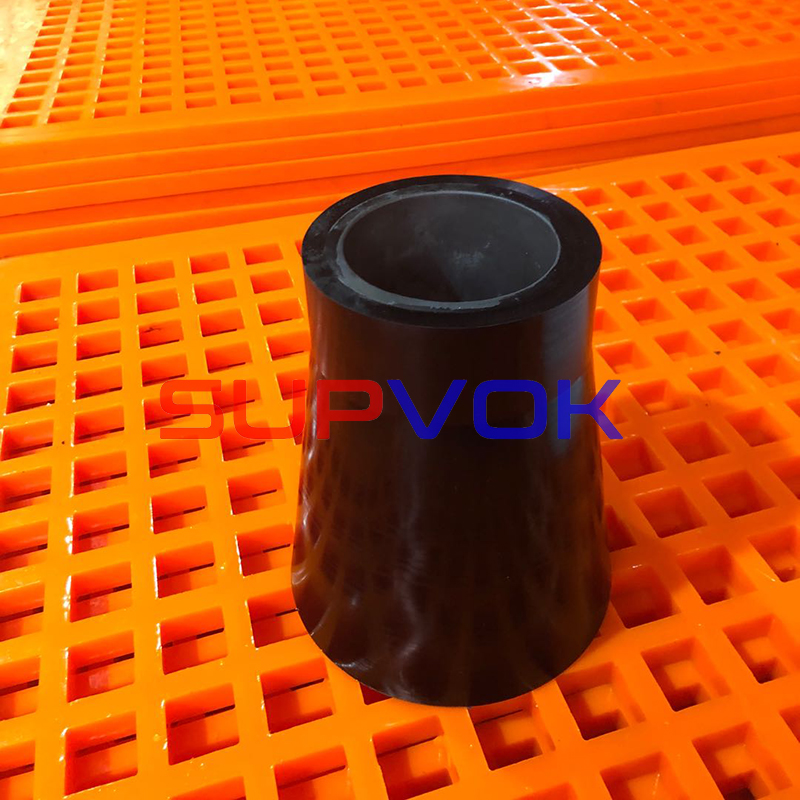

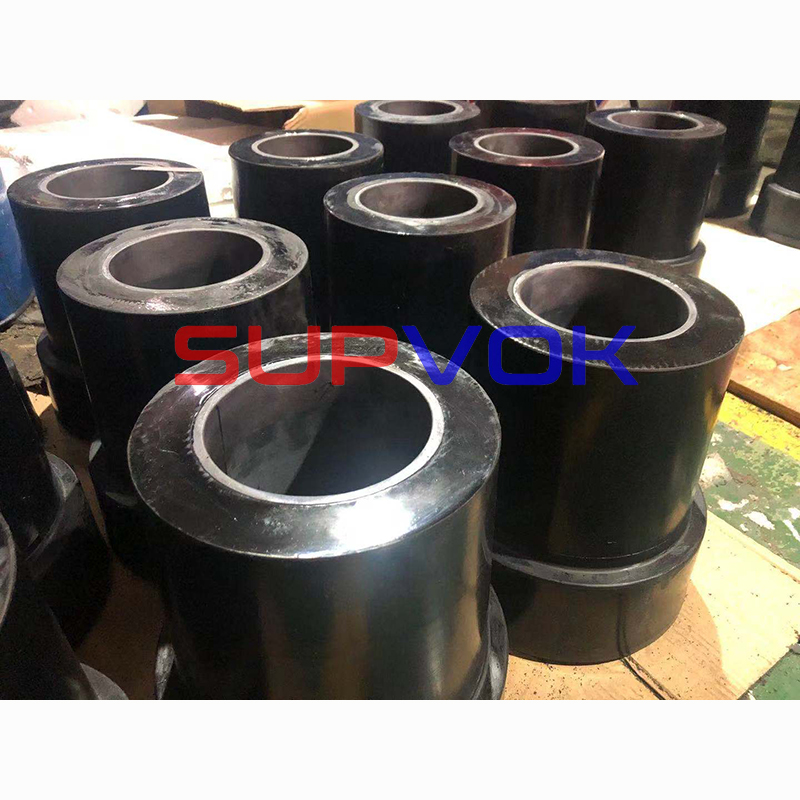

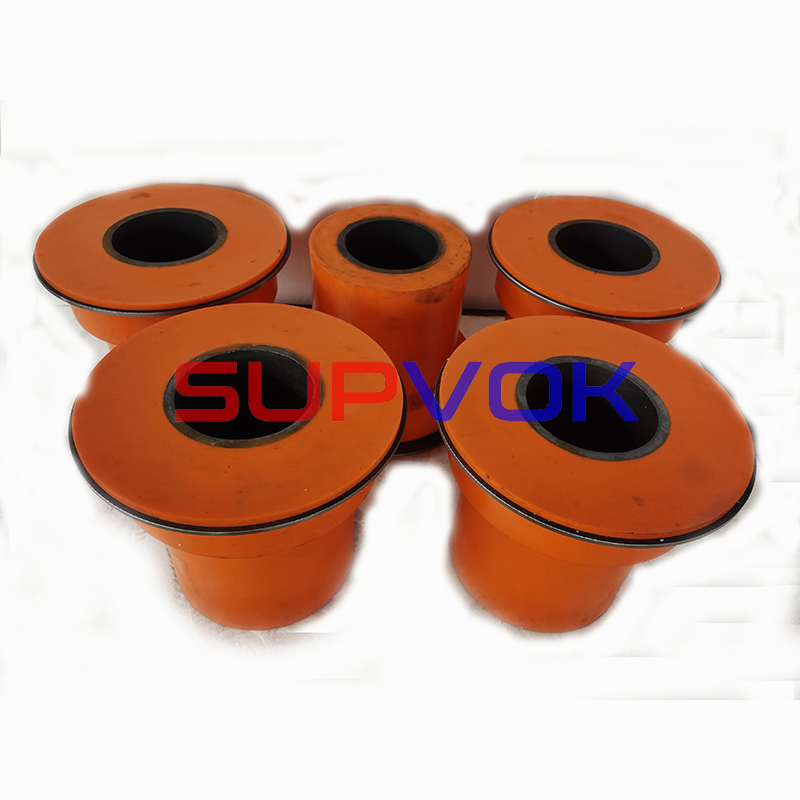

In order to meet the customer's special requirements for wear under different materials and industrial and mining conditions, the cyclone can use different lining wear-resistant materials:
Ceramic lining: silicon carbide, aluminum oxide, zirconia, ZTA, etc
Polyurethane lining
Rubber lining
Hydrocyclone Technical Parameter
|
Model |
Diameter (mm) |
Angle of Cone (° ) |
Diameter of Overflow Outlet (mm) |
Diameter of Spigot (mm) |
Max Feeding Size (mm) |
Inlet Pressure (MPa) |
Capacity (m3/h) |
Separation Particle Size (um) |
Overall Dimension |
Unit 〜Weight (Kg) |
||
|
Length (mm) |
Width (mm) | Hight (mm) | ||||||||||
|
FX840 |
840 |
20 |
280〜380 |
80〜220 |
18 |
0.04〜0.2 |
500〜900 |
74〜350 |
1700 |
1500 |
3700 |
1621 |
|
FX750 |
750 |
45 |
180〜290 |
85〜175 |
16 |
0.04〜0.2 |
400〜500 |
74〜300 |
1210 |
910 |
2680 |
1400 |
|
FX710 |
710 |
45 |
175〜270 |
80〜165 |
16 |
0.04 〜0.2 |
350〜450 |
74〜250 |
1255 |
1185 |
1040 |
1250 |
|
FX660 |
660 |
20 |
165〜250 |
80〜155 |
16 |
0.03〜0.2 |
250〜350 |
74〜220 |
1140 |
1000 |
2920 |
800 |
|
FX660 |
45 |
165〜250 |
80〜155 |
16 |
0.03〜0.2 |
250〜350 |
74〜220 |
1140 |
1000 |
2000 |
995 |
|
|
FX610 |
610 |
20 |
155〜230 |
75〜140 |
13 |
0.03〜0.2 |
200〜300 |
74〜220 |
875 |
950 |
2560 |
550 |
|
FX610 |
45 |
155〜230 |
75〜140 |
13 |
0.03〜0.2 |
200〜300 |
74〜220 |
875 |
950 |
1810 |
600 |
|
|
FX500 |
500 |
20 |
125~185 |
55〜115 |
10 |
0.03〜0.3 |
140〜220 |
74〜200 |
850 |
700 |
2050 |
380 |
|
15 |
74〜150 |
850 |
700 |
2380 |
540 |
|||||||
|
45 |
74〜150 |
850 |
825 |
1630 |
430 |
|||||||
|
FX350 |
350 |
20 |
80~120 |
30〜70 |
6 |
0.04〜0.3 |
60〜100 |
50〜150 |
775 |
620 |
1765 |
208 |
|
15 |
50〜120 |
775 |
620 |
1970 |
210 |
|||||||
|
FX300 |
300 |
20 |
65~115 |
20〜50 |
5 |
0.04〜0.3 |
45 〜85 |
50〜150 |
498 |
485 |
1415 |
105 |
|
15 |
40 〜100 |
498 |
485 |
1642 |
169 |
|||||||
|
FX250 |
250 |
2。 |
60~100 |
16〜45 |
3 |
0.06〜0.35 |
40 〜60 |
40〜100 |
410 |
380 |
1215 |
75 |
|
15 |
40〜100 |
410 |
380 |
1405 |
73 |
|||||||
|
10 |
30〜100 |
410 |
380 |
1788 |
85 |
|||||||
|
FX200 |
200 |
20 |
40〜65 |
16〜32 |
2 |
0.06〜0.35 |
25 〜40 |
40〜100 |
365 |
330 |
1030 |
45 |
|
15 |
30〜100 |
410 |
330 |
1083 |
54 |
|||||||
|
10 |
30〜100 |
400 |
365 |
1490 |
60 |
|||||||
|
FX150 |
150 |
20 |
30〜45 |
8〜22 |
1.5 |
0.06〜0.35 |
11 〜20 |
30 〜74 |
310 |
265 |
820 |
29 |
|
15 |
30〜74 |
310 |
265 |
878 |
30 |
|||||||
|
10 |
30 〜74 |
310 |
265 |
1160 |
35 |
|||||||
|
FX125 |
125 |
17 |
25〜40 |
8〜18 |
1 |
0.06〜0.35 |
8~15 |
20〜100 |
260 |
218 |
620 |
10.2 |
|
8 |
20 〜74 |
260 |
218 |
870 |
33 |
|||||||
|
FX100 |
100 |
20 |
20〜40 |
8~18 |
1 |
0.06〜0.35 |
5~15 |
20 〜100 |
260 |
210 |
525 |
8,6 |
|
15 |
20〜100 |
268 |
215 |
720 |
13 |
|||||||
|
8 |
20 〜100 |
365 |
150 |
1065 |
23 |
|||||||
|
5 |
20〜100 |
365 |
150 |
1505 |
30 |
|||||||
| FX75 | 75 |
15 |
15~22 |
6〜12 |
0.6 |
0.1 〜0.4 |
2〜5 |
20〜74 |
240 |
230 |
420 |
2.2 |
|
5 |
5~40 |
240 |
230 |
778 |
6.5 |
|||||||
| FX50 | 50 |
15 |
11〜16 |
3〜8 |
0.3 |
0.1〜0.4 |
1〜2 |
10〜74 |
160 |
137 |
400 |
1.5 |
|
5 |
160 |
137 |
680 |
5.5 |
||||||||
| FX25 | 25 |
5 |
6〜10 |
3~7 |
0.2 |
0.1〜0.4 |
0.8〜1.2 |
4〜20 |
130 |
85 |
495 |
1.2 |
| FX10 | 10 |
4 |
3〜4 |
2〜3 |
0.2 |
0.2〜0.4 |
0.1〜0.2 |
2〜10 |
30 |
30 | 195 |
2 |
