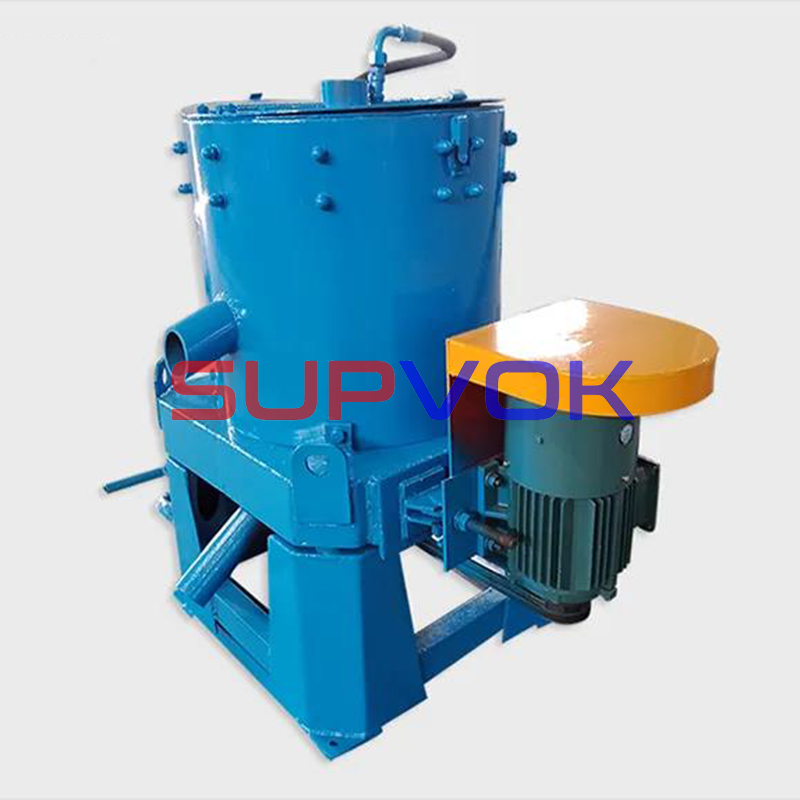

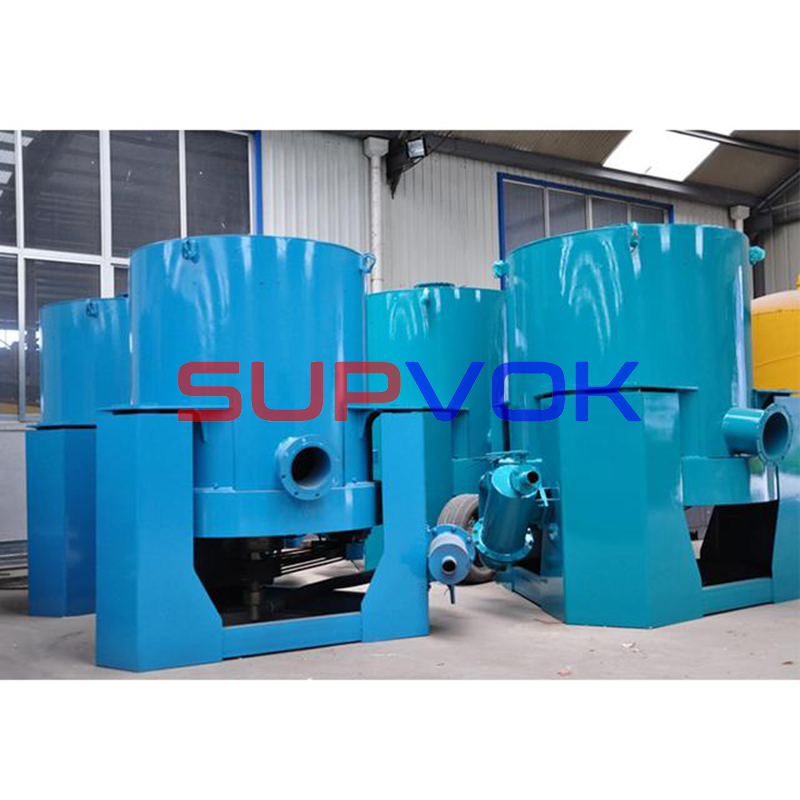

Sand gold equipment -Centrifugal concentrator
Sand gold equipment -Centrifugal concentrator
Specifications and Details
● Assembled length 2.7m
● The width of the chute in each packing box varies, which is about 40cm.
● Nesting is allowed. After complete disassembly and nesting, its size is about 90cmx41cm × 35c.
● Weight includes about 43kg (excluding water pump and hose).
● The feeding speed is up to 8t/h, which can maintain a higher operation efficiency.
● It can handle about 15-20cm stones.
● The feed bin grid screen can remove 99% of the large particles of stone;
● High efficiency concentration pad has been configured.
● The installation can be completed within about 30 minutes.
● The portable type can be delivered to the destination in advance by express.
● All PVC pipes can be purchased in hardware stores to help with matching.
● 3-inch impurity pump with flow of at least 60m3/h.
● 4-inch sand pumping pipe can be connected.
Small gold concentration sand gold equipment
1. The adjustment of water consumption depends on the recovery rate of raw materials;
2. The adjustable hopper plate can control the feeding speed according to the raw materials;
3. Deep V-shaped chute can capture fine, powder grade gold and handle more materials.
4. The removable chute can be easily cleaned.
Product characteristics
1.Excellent impact resistant performance and wear-resistant performance
2.Long service life and high cost performance
3.The noise is lower than that of the metal lining plate.
4.Light weight and easy disassembly.
Product specification
Overall dimension: 70cm*28cm*53cm
Processing capacity: 3-4 liters per hour (for reference only, the processing capacity will vary according to different raw materials)
Weight: 4-5kg
Package size: 70cm*50cm*50cm
Including: equipment, pump, circulating tank, water basin, 14inch gold basin, cleaning agent, brush, aluminum shovel.
Standard gold separation chute gold equipment
This equipment is the choice for prospecting or small-scale gold mining. The development and testing of the 30 # gold processing chute gold placer equipment has lasted for more than 6 months. The new standard chute adopts the traditional style and size, which is convenient for assembly. However, its performance is higher than that of most products on the market today.
The gold selection chute sand gold standard equipment can easily handle 150-200 barrels of raw materials/hour. While maintaining a very high recovery rate, it can also collect very fine gold.
Specifications:
● The product is about 2.4m long and 0.3m wide (the widest part).
● The chute is made of fine aluminum, with a thickness of about 3mm;
● Its self weight is about 35kg, which is equipped with efficient gold selection pad.
● All materials can be screened through the grid screen;
● It has a custom adjustable leg design;
● It has special reverse ramp and vortex chamber.
Automatic washing machine for sand and gold
The automatic washing machine for sand and gold, also known as the belt chute, is a kind of equipment for gravity beneficiation. It has the ring conveyor belt with high T-edge.
In the vulcanization process, the conveyor belt is designed and manufactured with concave convex orderly grid bars or herringbone patterns. These striped grids are used to store mineral particles. Under the combined action of the impact force of water flow, the gravity of ore particles and the friction force at the bottom of the trough, the pulp is stratified according to the density. The particles with high density are deposited at the bottom, while the particles with low density are washed away by water and become tailings.
Basic parameters
Size: 4*1.4m
Processing capacity: 100-120 t/h
Motor power: 5.5kw
Recovery rate: 95%
1. Operation speed:
Under the same other conditions, the faster the belt surface runs, the lower the enrichment ratio of sand gold is;
2. Slope of belt surface:
The slope of belt surface with 13 degrees to 15 degrees is good for sand gold. When other conditions are the same, the larger the slope is, the more likely it is to make the mineral particles distributed unevenly on the belt surface, and form a torrent at the same part, thus reducing the recovery rate. This is not conducive to sorting. At the same time, when the slope exceeds a certain limit, the movement speed of ore particles on the rebelt surface decreases.
3. Ore feeding amount:
When other conditions are the same, the greater the ore supply, the lower the enrichment ratio and recovery of placer gold. The larger the ore feeding amount is, the larger the belt surface flow is. Many minerals are washed away by the slurry on the belt surface before they can be deposited. The feeding amount needs to be adjusted according to the belt width and length.
4. Ore feeding concentration：
The higher the slurry concentration is, the lower the slurry velocity on the belt surface is. Unclear ore particle stratification will lead to the decrease of washing efficiency; If the feed concentration is too small, the slurry flow rate is too fast, thus reducing the recovery rate. Generally, the ore feeding concentration should be 30% - 40%.
5. Water supply
Generally, a certain amount of washing water is fed into the automatic sand gold washing machine to improve the enrichment ratio of sand gold. However, it is necessary to determine the most appropriate water supply through experiments.
