Wear-resistant pipes
Wear-resistant pipes

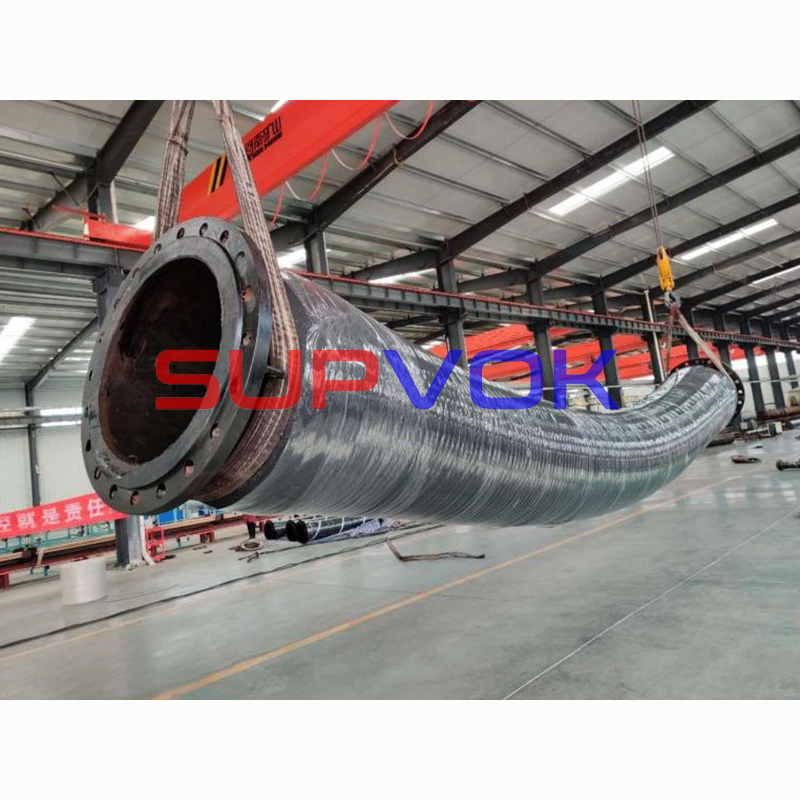

Rubber hose

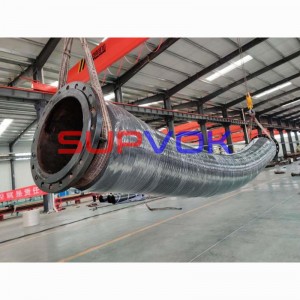

Rubber hose should be high abrasion resistant hose. The inner wear-resistant adhesive is a high wear-resistant formula developed by our company.
Its comprehensive performance reaches the international advanced level:
The reinforcing layer is made of military bulletproof textile fiber.
Its strength is 4 times that of carbon steel:
The spiral metal skeleton is made of high-quality alloy steel, which has good strength and toughness and has excellent affinity with rubber.
The above basic material properties ensure the quality of high wear resistant hose, which can achieve the best horizontal structural characteristics.
(1) Reasonable structure
It is composed of wear-resistant layer, high strength cord fabric, filler rubber, metal spiral skeleton and sub opening fabric protective adhesive.
(2) Convenient installation

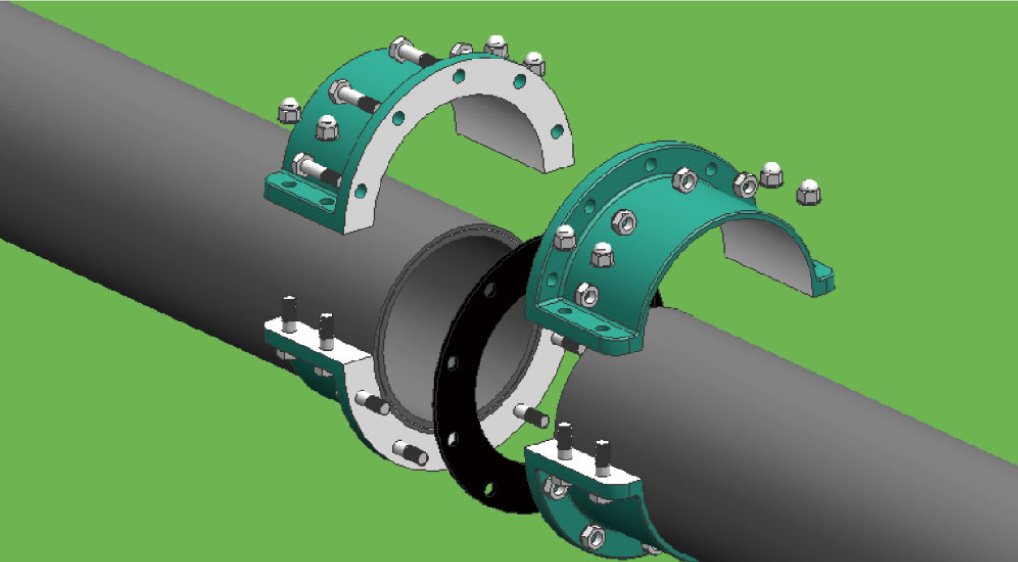

High abrasion resistant hose is equipped with removable connector. The utility model has the advantages of adjustable pipe length, simple installation, convenience and reliability. The joint is equipped with a gasket to ensure zero leakage.
(3) Wide application
High abrasion resistant hose can be used in multiphase (solid, liquid and gas) mixed transportation field.
(4) Various types
The high wear-resistant hose has complete dimensions, which can meet the user's requirements for various calibers, lengths, pressures, etc.

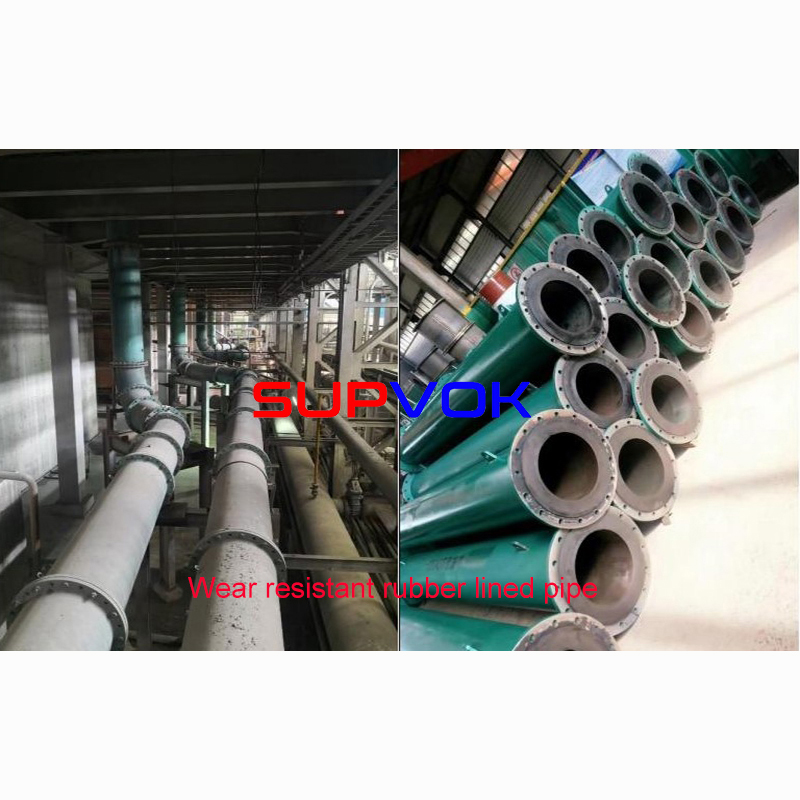

XGS - Metallic Elastomer Composite Pipe
XGS - Metallic Elastomer Composite Pipe adopts Q235 steel pipe and wear-resistant and corrosion-resistant elastomer as the lining layers. The product has the advantages of wear resistance, impact resistance, acid and alkali corrosion resistance, scale inhibition, small resistance, long service life, etc. It is suitable for multiphase (solid, liquid and gas) mixed transportation of mines in metallurgy, electric power, chemical industry, coal, cement and other industries. It is widely used in fine tailings transportation system, coal ash transportation system of power plant, chemical anti-corrosion, coal slurry transportation of coal washing plant, port dredging and other fields.
Selection of polyurethane wear-resistant materials
1.KSINO has developed polyurethane materials for nearly 30 years. It has unique advantages in elasticity and high wear resistance. Selecting the corresponding polyurethane materials can meet the use requirements under different environments. It is suitable for hydrocyclone lining, ball mill lining plate, flotation machine stator and rotor rubber coating, elastic sieve plate, concrete pump piston, slurry pump sheath and impeller rubber coating, pipe lining, etc., with excellent wear resistance and durability.
2.Selection of polyurethane materials for wrapping several worn flow passage products
2.1 Cyclone
A2090: excellent wear-resistant performance, excellent bearing capacity and price advantage
A2370: highly wear-resistant performance; its wear-resistant performance is about 1.5-2 times that of A2090.
B2/90: excellent wear-resistant performance; it can be used for a long time in 80 degree slurry.
B1/98: medium level of wear-resistant performance; it has high modulus and excellent hydrolysis resistance.
B4/90: excellent wear-resistant performance; it is suitable for small pure polyurethane hydrocyclones.

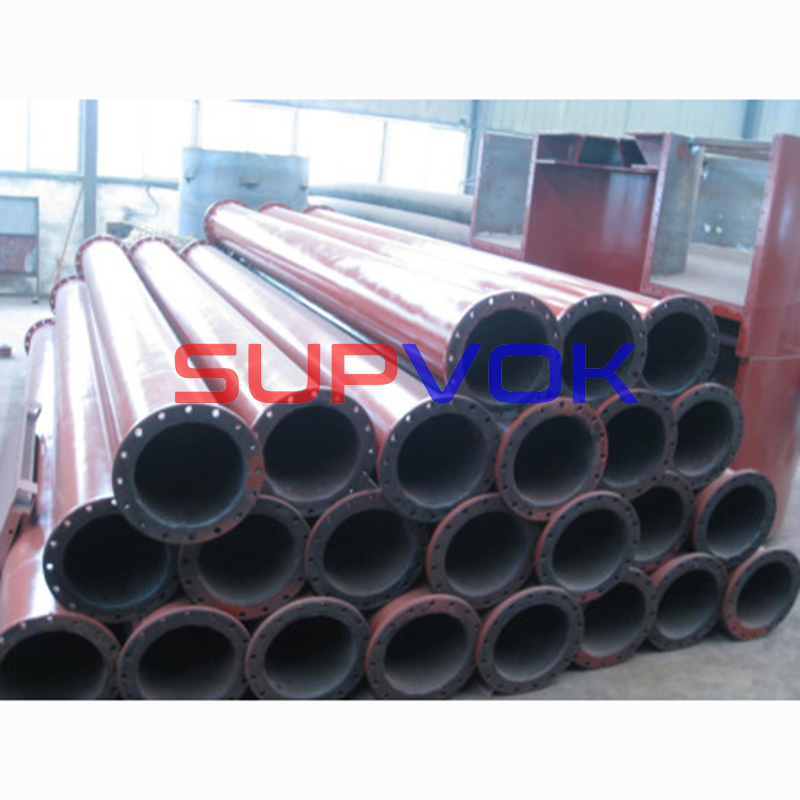

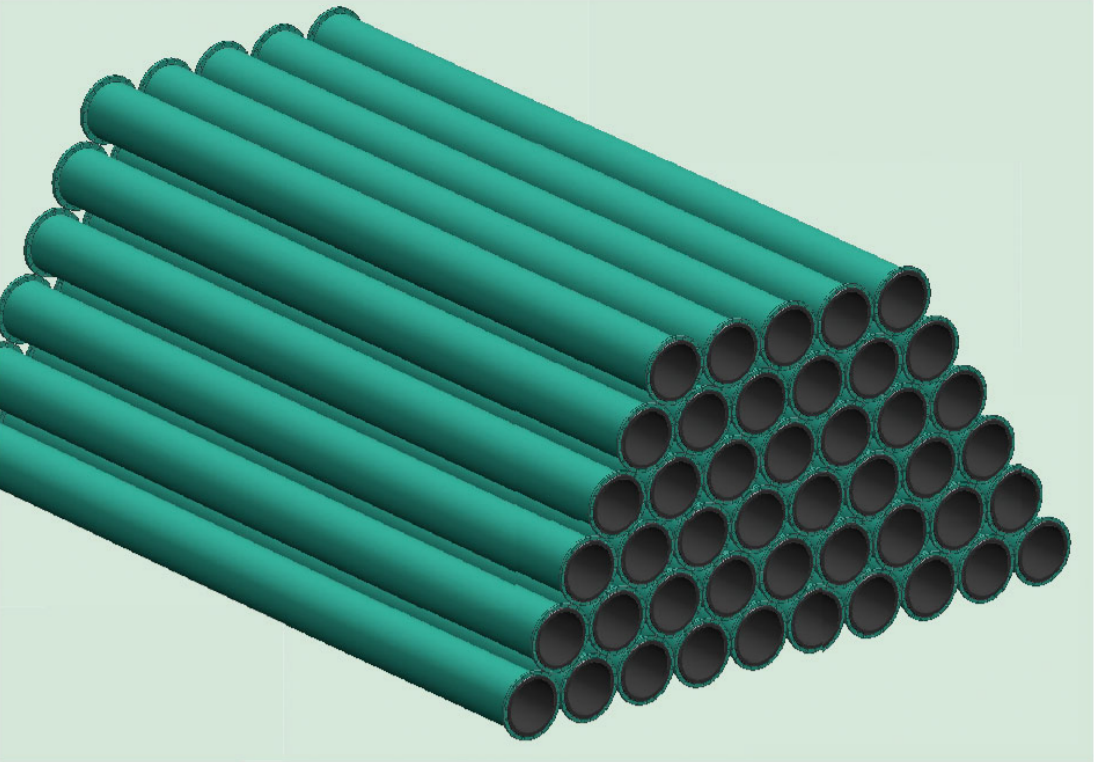

XGS - Metallic Elastomer Composite Straight Pipe
Product variety

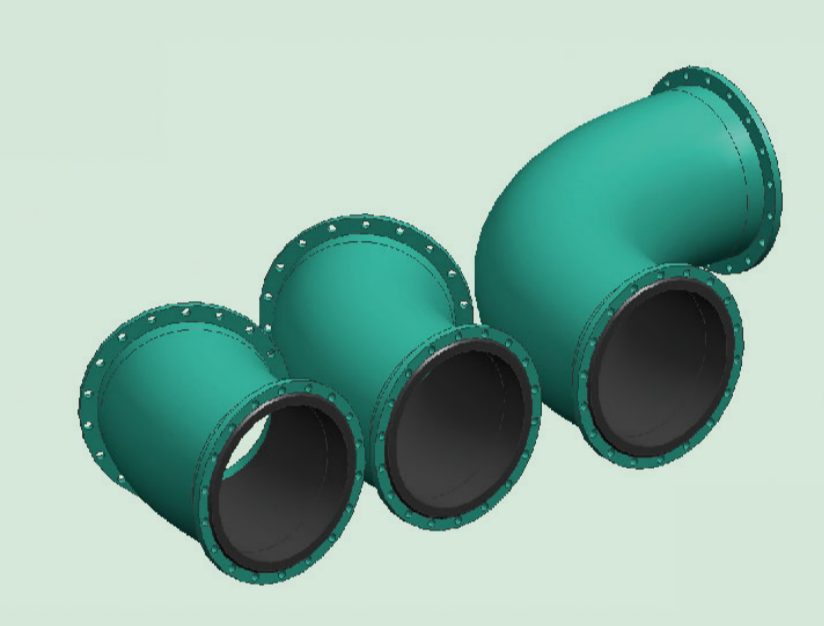

XGS - Metallic Elastomer Composite Pipe can be made into straight tubes, elbow pipes, reducing pipes, T-branch pipes, expansion couplings and various nonstandard pipelines & pipe fittings to meet customers’ different needs.
XGS - Metallic Elastomer Composite Elbow

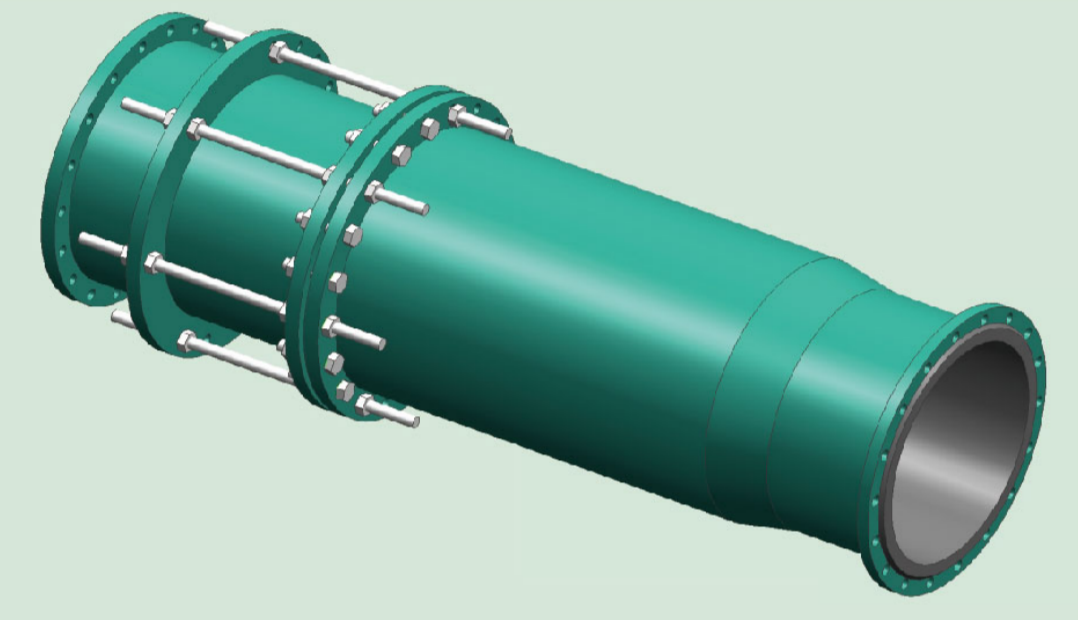

XGS - Metallic Elastomer Composite Expansion Coupling

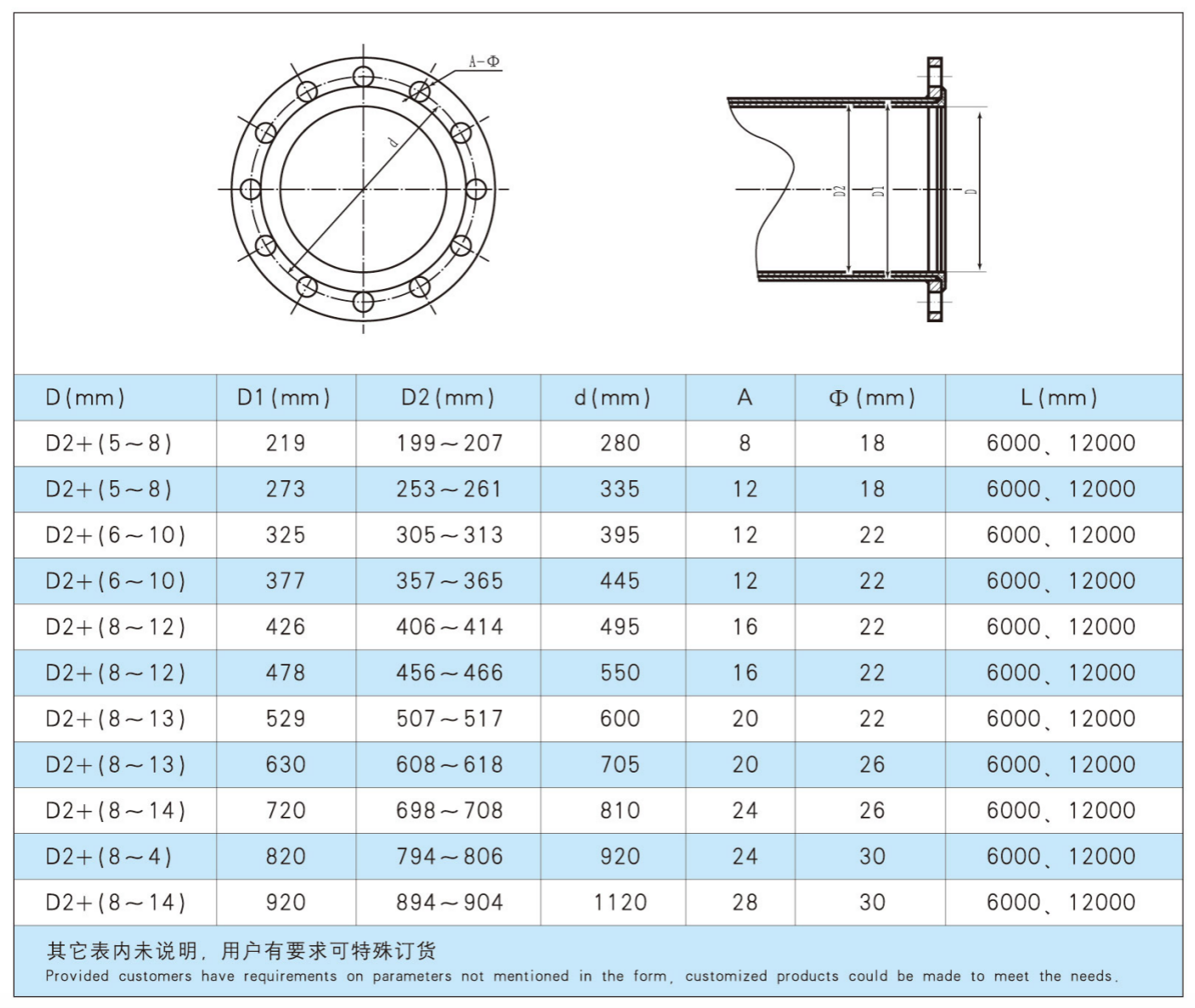

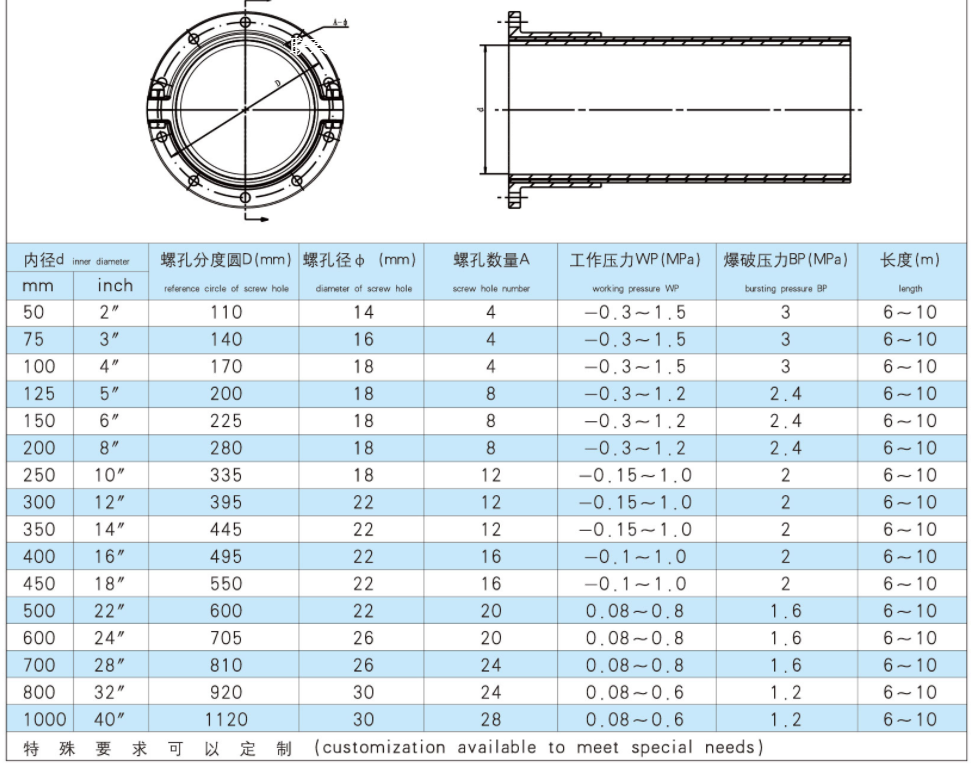

Specification & size
