Wear-resistant rubber products
Wear-resistant rubber products
Product introduction
The multi-layer high-frequency vibrating screen adopts the internationally advanced design concept and the forced multi-channel slurry distribution mode, which reduces the slurry flow rate on the screen surface, with long service life, compact structure and low noise. Compared with hydrocyclone, the classification efficiency is more than 80%. Due to high classification efficiency and less return of qualified products, raw ore feeding can be increased, and the system processing capacity can be improved by 10-20%. It can reduce the over crushing of ores and increase the metal recovery rate by 1-3%. Some rare metals can reach 10%. The reduced quantity of recalling products is important to save the useless work of returned materials. It only needs to flow into the ore feeding end directly from the feeding end. It does not need to feed ore under pressure, which saves about 20% energy compared with the cyclone.
The screening products can be made of rubber and polyurethane according to the customer's on-site needs.

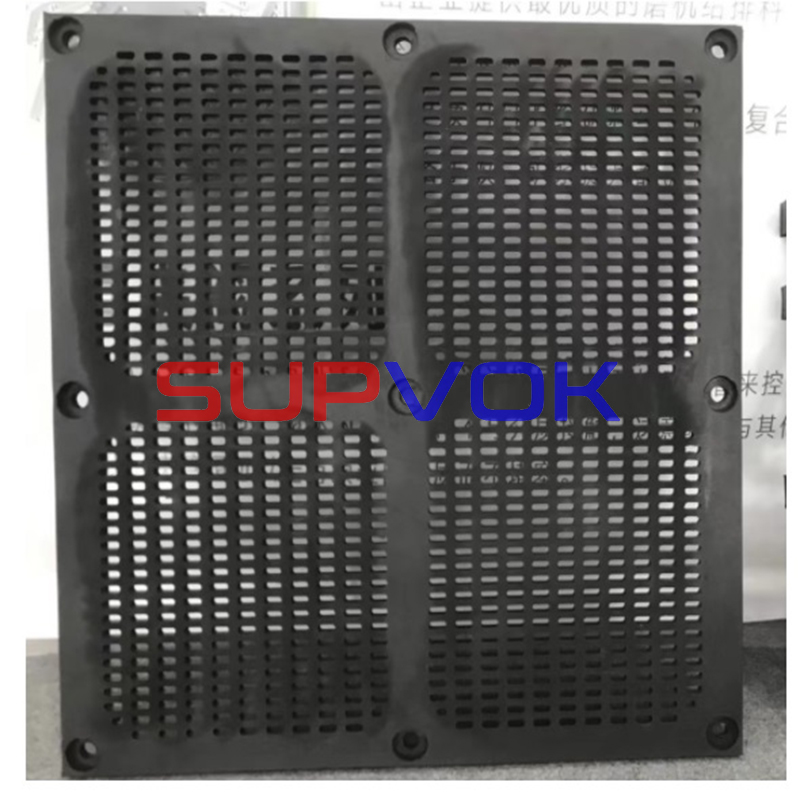

1) The sieve plate specifications include various grooves: square hole, round hole, special-shaped hole, etc.
2) The rubber is made of imported Malaysian natural latex, which has the characteristics of high wear resistance and high elasticity. Professional formula design is carried out for rubber sieve plate in order to make suitable for various impact wear screening conditions.
3) The imported high-performance polyurethane is adopted, which has the characteristics of ultra-high abrasion resistance and high impact resistance.
4) The design team adopts fatigue resistant design such as finite element analysis (FEA). Through EDEM simulation analysis, the most reasonable and optimal sieve plate structure is designed.
Diaphragm of rubber filter press
Product introduction
Filter plate and diaphragm of rubber filter press has excellent chemical resistance and fatigue resistance. Its special structure and materials ensure the elasticity of the diaphragm.The super large press stroke can obtain thin and low water content filter cake. Under normal temperature, the maximum pressing pressure can reach 1.6Mpa. Compressed air or high-pressure water can be used as the pressing medium. This kind of diaphragm has a long service life. The combined structure makes it more convenient to replace the diaphragm, and also reduces the use and maintenance cost of the equipment. KSINO provides customized services. Based on your specific production process and scientific and reasonable experimental results, the technology Department will select reasonable filtering equipment for you to meet your production needs and maximize your production efficiency.
Outstanding advantages
KSINO provides customization and production for diaphragm of rubber filter press!
KSINO can make mold development and product customization according to the parameters provided by clients!
Characteristics of diaphragm of rubber filter press
- It can greatly improve the solid content of filter cake and excellent sealing performance.
- It can shorten the filtering time and significantly improve the production efficiency.
- It can press optional fluid media such as air, inert gas, water and oil to meet the needs of different industries.
- With a press safety protection system, it can avoid damage to the diaphragm caused by misoperation.
- Depending on its strong corrosion resistance, it is basically applicable to all solid-liquid separation operations.
Working rationale
Specification:
800 Model, 1000 Model, 1250 Model, 1500 Model, 1600 Model, 1500*2000 Model, 2000*2000 Model

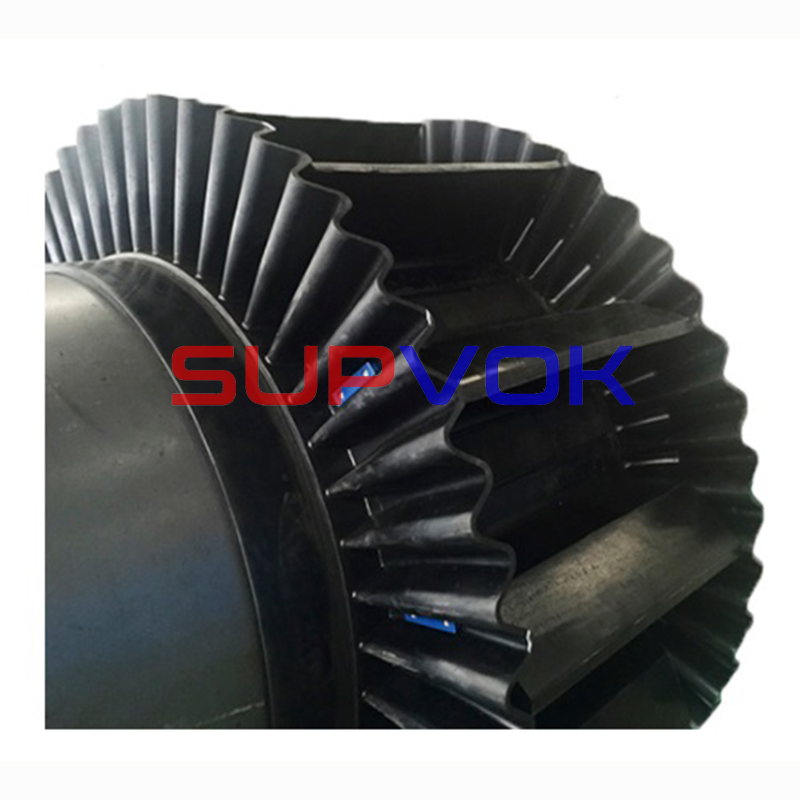

Corrugated side wall with large dip angle
Corrugated side wall with large dip angle
Product introduction
Corrugated side wall with large dip angle is also called side wall with large dip angle or side wall with hemline.
Structure composition of conveyor belt with large dip angle and hemline
Baseband:
The framework material adopts polyester cotton impregnated canvas (EP canvas and steel rope core) and transverse rigid reinforcement layer. The transverse rigid reinforcing layer is useful to solve the collapse of conveyor belt with large side wall.
Side wall: Based on the side wall’s function and the operation characteristics of the overall belt, KSINO has taken measures such as increasing the glue content of the side wall, pasting nylon cloth inside the side wall as the skeleton layer and so on. KSINO also enhances the bending resistance and tear resistance of side wall in order to improve the product service life.
Diaphragm: By adopting the technique of mixing rubber, fiber composite materials,
and enhanced impact resistance, the diaphragm has high stiffness and high hardness in order to avoid deformation caused by large force.
Bonding of baseband, side wall and diaphragm: By adopting advanced technology of double synchronous low temperature continuous vulcanization, it improves the bonding strength and avoids the aging of the base belt caused by repeated high temperature vulcanization.
The bolt connection technique is adopted between the side wall and diaphragm. It does not only solve the problem of material leakage caused by large angle lifting, but also improves the belt rigidity.
Outstanding advantages
Product characteristics (ordinary conveyor belt with large dip angle and corrugation)
- Increasing conveying angle (30~90 degrees);
- Owning small space and low level investment
- Owning large conveying capacity and improving lifting height;
- Smooth transition from horizontal to inclined (or vertical);
- Suitable for conveying powdery, granular, small, paste and liquid materials that are easy to scatter;
- Low energy consumption, simple structure, high tape strength and long service life.
Working rationale
Parameters of conveyor belt with large dip angle and corrugation：
According to the different properties of covering adhesive, it can be divided into ordinary type, heat resistant type, cold resistant type, acid and alkali resistant type, oil resistant type, etc.
1) Core material: ordinary cotton canvas (CC), polyester cotton blended canvas (CP), nylon (NN), polyester (EP), etc;
2) Beltwidth: 100mm-2000mm;
3) Cloth layer: 2-20 layers;
4) Cover glue: working face (1.5-15mm) and non working face (0mm-6mm);
